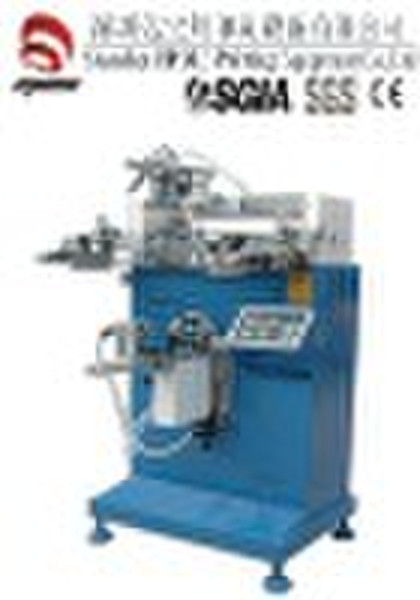

Round Screen Printing Machine

Pneumatic Round Screen Printing Machine Certification: CE approved Specification: 1.Micro computer controls each function's operation,automation highly,operate conveniently and easily; 2.Built-in 4 bit automatic counter; 3.It have printing function of round and pyramidal surface; 4.It have these functions of squeegee,ink-return and the lifting of work table,so it can simplify the operation and guarantee the stability of printing quality; 5. Printing speed and stroke could be adjusted to meet various requirements; 6. Automatic self-balancing squeegee ensures equal printing pressure; 7. Worktable and screen frame are adjustable for back/forth, left/right, up/down, high printing precision, convenient and fast adjusting; 8. Scraper section can be raised independently, exchange and clean easily the screen frame. Technical Parameters: Max. Printing Area:280*160mm Max. Net Frame Size: 580*280mm Min. Net Frame Size: 230*140 mm The length of workpiece:<280mm The conical degree of workpiece: forward direction<15degree; negative direction<7degree; Max.workpiece Diameter:full circle90 mm ;circle arc280 mm; Max.printing speed:1000pcs/hr Power:220V/50HZ 50W Air consumption:56L/min Overall Dimension:720×650×1180mm OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
